Manufacturer guidance from Avery Dennison and 3M makes one thing clear: wall condition and paint cure determine whether graphics adhere correctly, not just the skill of whoever holds the squeegee. Skip that step, and you risk bubbles, lifted edges, visible seams, and a graphic that needs replacing within months.
This guide walks through the planning, preparation, application, and validation steps that separate a clean installation from a costly redo, and explains when the job calls for a trained installer instead of a DIY attempt.
Key Takeaways
- Wall cleanliness, paint cure, moisture, and temperature determine adhesion success more than installer skill alone.
- Measure at multiple points, dry fit every panel, and map outlets, trim, and corners before exposing adhesive.
- Apply graphics gradually with a squeegee and consistent pressure; stretching the material causes long-term peeling.
- Large, multi-panel, textured, or patient-facing installations are strong candidates for professional installers.
- Request quotes that separate design, surface prep, installation labor, access equipment, and removal costs.
Installation Guide for Wall Graphics
Most wall graphics installations follow four phases:
- Planning the graphic and site
- Preparing the wall
- Positioning and applying the material
- Inspecting and maintaining the finished piece
Each phase builds on the last. Skip ahead, and problems surface later as bubbles or peeling edges that are harder to fix once adhesive sets.
Skill level requirements shift with project size. A single smooth-wall decal in a back office is a reasonable DIY task. A branded mural in a reception area, spanning multiple panels or wrapping a corner, demands more precision and usually a second set of hands.
Timing matters too. Work area access, business-hours coordination, and patient flow all affect scheduling. Healthcare and optical practices face extra constraints: clinical equipment, accessible routes, and required signage can't be blocked or obstructed, even temporarily, during installation.
Prerequisites and Safety Considerations
Evaluate the Wall Before You Start
Before any material touches the wall, confirm the surface is smooth, clean, dry, structurally sound, and free of dust, grease, loose paint, cracks, or flaking areas.
Avery Dennison's interior wall graphics bulletin also flags that flat, matte, and certain additive-containing paints can reduce adhesion compared to gloss or semi-gloss finishes.
Check these items before you proceed:
- Substrate type - confirm the graphic material is rated for painted drywall, glass, tile, concrete, brick, or textured walls
- Paint cure - new paint must fully cure per the paint and graphics manufacturers' instructions; no universal shortcut timeline exists
- Obstacles - map outlets, switches, vents, cabinets, trim, corners, doors, and any clinical or retail equipment that affects layout
- Compatibility testing - test the proposed film on each wall; 3M's wall guidance advises against assuming prior-job results will carry over

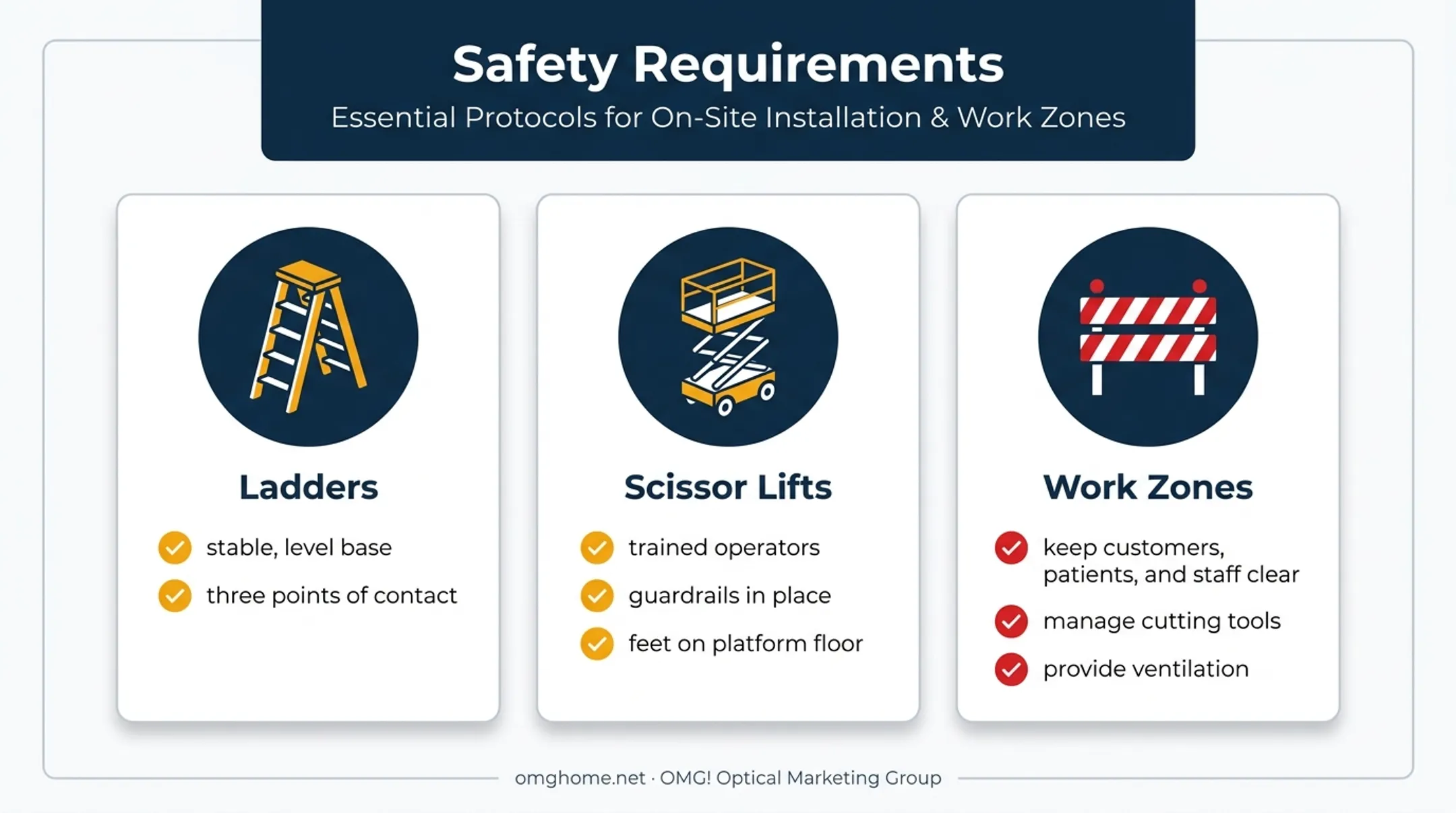

Safety Requirements for Ladders, Lifts, and Work Zones
Elevated installations introduce real risk. Ladders need a stable, level base, and workers should maintain three points of contact while climbing, per OSHA's ladder guidelines.
Scissor lifts require trained operators, guardrails in place, and feet planted on the platform floor, never the rails.
In occupied spaces, keep customers, patients, and staff clear of the work zone. Cutting tools, adhesives, and ventilation needs all factor into a safe setup, especially in exam rooms or active retail floors.
Stop Conditions
Postpone installation if any of these apply:
- Wall is wet, contaminated, or actively shedding paint
- Surface is structurally unsound
- Conditions fall outside the material's rated temperature range
- Area is inaccessible without proper equipment
Pushing forward anyway almost guarantees rework.
Tools and Parts Required
Match your tools to the material and substrate. Abrasive pads, harsh solvents, or excessive heat can damage both the wall and the graphic if they aren't confirmed compatible first.
| Essential Items | Optional / Project-Dependent |
|---|---|
| Lint-free cloths | Straight edge |
| Approved mild cleaning solution | Seam roller |
| Tape measure | Primer or surface repair materials |
| Level | Heat gun (approved applications only) |
| Painter's tape | Ladder or lift |
| Soft or felt-edged squeegee | Drop cloths |
| Sharp trimming knife | Protective gloves |
Large graphics, high walls, textured surfaces, and multi-panel murals often need specialist tools, additional installers, or access equipment that a standard toolkit won't cover.

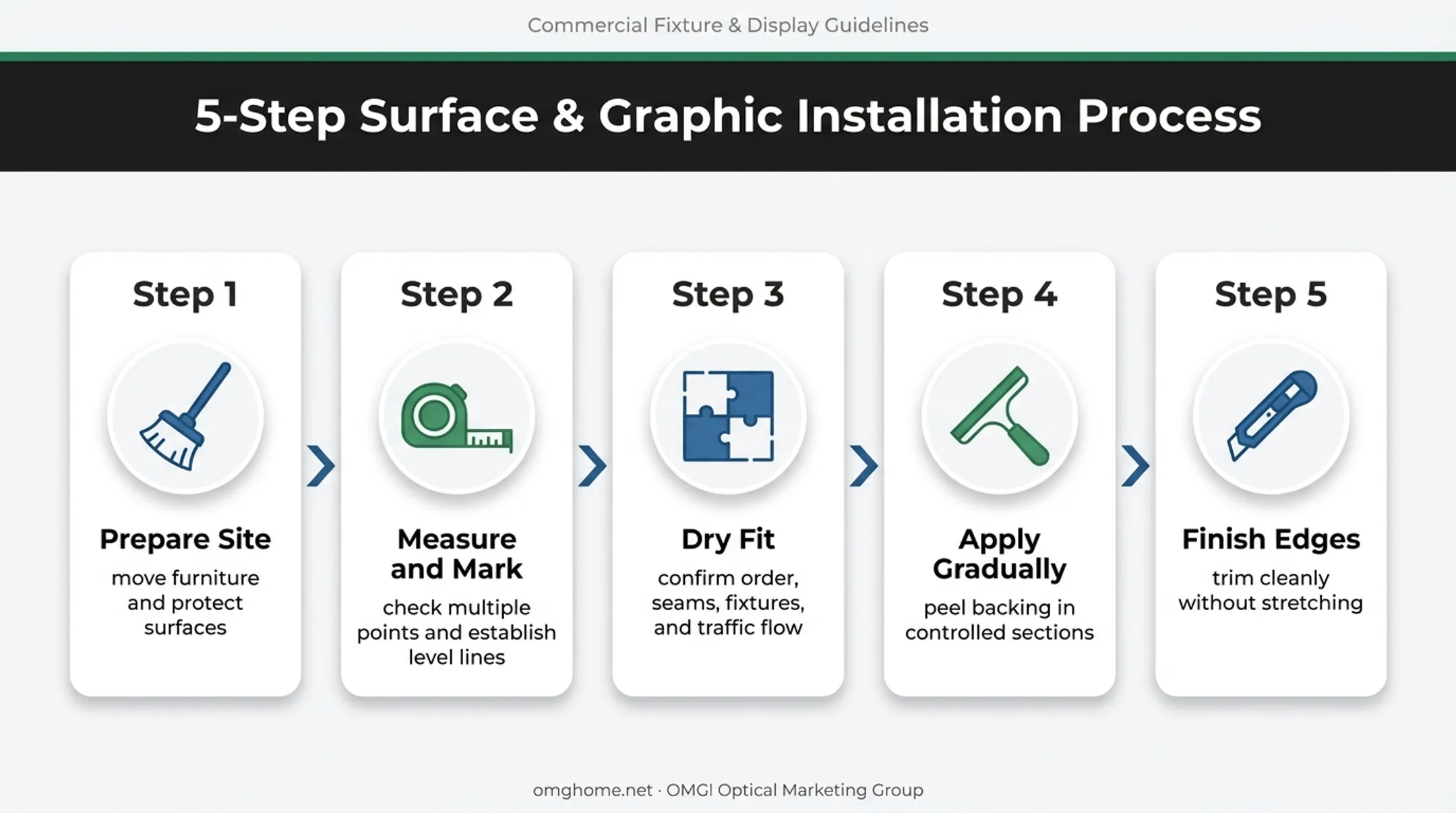

How to Install Wall Graphics Step-by-Step
Shortcuts are the number one cause of permanent alignment and adhesion problems. Skipping cleaning, measurement, or dry fitting rarely saves time once you factor in the fix.
- Prepare the site. Move furniture, protect adjacent surfaces, remove compatible covers, and let the wall dry fully after cleaning.
- Measure and mark. Check multiple points on the wall and establish level reference lines. Account for uneven walls, baseboards, ceiling lines, and the intended viewing height.
- Dry fit the graphic. Use painter's tape to position panels or numbered sections before removing any backing. Confirm panel order, seam placement, and how the design relates to fixtures and traffic flow.
- Position and secure gradually. Work from a hinge or starting edge, peeling backing paper in controlled sections. Apply with consistent squeegee pressure, working from the center outward.
- Finish corners, edges, and seams. Leave enough material for clean trimming. Avoid stretching the graphic or forcing seams together, which traps debris and creates stress points that lift later.
For large commercial, textured, elevated, or highly visible walls, trained installers manage heat, pressure, panel alignment, and substrate contours that improvised DIY technique usually can't replicate.
Post-Installation Checks and Validation
Inspect the finished graphic under normal room lighting, from the distance a customer or patient would actually view it. Look for bubbles, wrinkles, lifted edges, visible seams, scratches, and skewed alignment.
Before the space reopens:
- Gently test edges and transition points for full adhesion
- Confirm doors, drawers, outlets, and equipment remain fully usable
- Verify the graphic doesn't block required notices or accessible routes
- Photograph the finished work and record material and cleaning guidance
- Get sign-off from the client or site manager
Catching issues now, before adhesive fully sets, avoids a second visit and protects the investment in both the wall and the graphic.

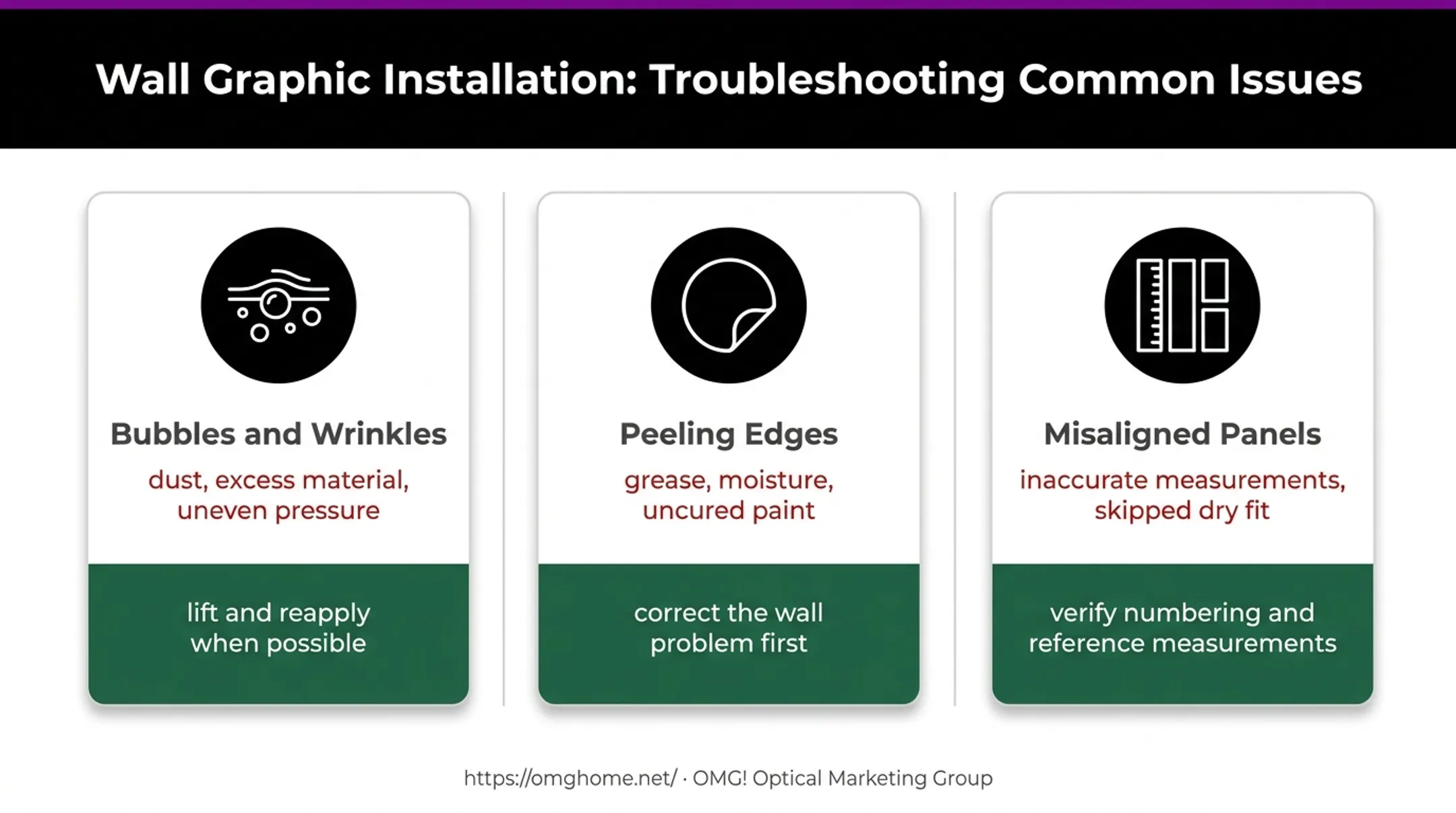

Common Installation Problems and Fixes
Bubbles, Wrinkles, or Air Pockets
Likely causes:
- Dust under the material
- Applying too much graphic at once
- Uneven squeegee pressure
- Working outside the recommended temperature range
Fix: Stop before pressing the area permanently flat. Lift and reapply where the material allows, working from the center outward. Replace sections with severe creasing rather than forcing them down repeatedly.
Peeling Edges or Weak Adhesion
Likely causes:
- Grease or moisture on the wall
- Uncured paint or loose wall coating
- Incompatible material choice for the substrate
Fix: Correct the underlying wall problem first. Let the surface dry or finish curing, re-clean using the approved method, and talk to your graphics supplier about an alternative adhesive for textured or difficult walls.
Misaligned Panels, Seams, or Cropped Design Elements
Likely causes:
- Inaccurate measurements
- Assuming the wall is perfectly square
- Skipping the dry fit
- Applying panels out of sequence
Fix: Confirm panel numbering before application, use multiple reference measurements, and have a second person verify alignment before each panel goes on permanently. For major errors, pause and bring in a professional rather than trimming away essential artwork.
Pro Tips for Installing Wall Graphics Effectively
Treat the graphic as part of the room, not an add-on. Scale, color, lighting, furniture placement, and wayfinding all affect how a mural or branded wall actually reads once it's installed. A graphic that looks great on a design proof can feel cramped or mismatched with existing signage if nobody checked the full environment first.
A few practical habits make a measurable difference:
- Match material and strategy to wall type and project duration—smooth interiors and high-traffic, short-run displays need different films
- Schedule installation during low-traffic hours and confirm access ahead of time
- Build in time for inspection and corrections before the space reopens
- Hire a specialist for large, multi-panel, elevated, or customer-facing installations
Scale matters here. In one documented hospital project, Avery Dennison's wall film installation across six rooms took three applicators roughly two weeks to complete, using plumb lines and careful corner planning throughout, according to Avery Dennison's hospital case study. That's a useful reference point for what multi-room commercial work actually requires.
OMG! Optical Marketing Group brings that same full-room approach to eyecare providers. In a Total Vision and Zeiss project, custom graphics and signage were planned with lighting and frame merchandising instead of as a standalone wall job. OMG!'s design-to-delivery process folds graphics into the same phase as fixtures, lighting, and signage, so the finished space looks coordinated rather than patched together.
When requesting a quote, ask for line items covering:
- Design and artwork preparation
- Printing or material costs
- Surface preparation
- Installation labor and access equipment
- Removal and any required repairs
Avoid accepting a flat, universal price. Every wall, and every practice, is different.
Conclusion
A clean wall graphics installation depends on more than sticking material to drywall. Surface readiness, accurate measurements, compatible materials, controlled application, and a final inspection all shape how the graphic looks and how long it lasts.
Small, well-planned projects are reasonable for a prepared in-house team. For large murals, multi-panel layouts, or any customer-facing commercial space, an experienced installer protects both the wall and the brand presentation that depends on it.
Frequently Asked Questions
How much do wall graphics cost?
Cost depends on graphic size, material, design complexity, number of panels, wall condition, access, surface prep, and removal needs. Request a site-specific quote rather than relying on a general estimate.
Is installing wall graphics difficult?
Small, smooth-wall decals are manageable for a prepared team. Large murals, multi-panel graphics, textured surfaces, elevated walls, and high-visibility commercial spaces require more precision and usually a trained installer.
What tools do I need to install wall graphics?
A clean lint-free cloth, approved cleaning solution, tape measure, level, painter's tape, squeegee, and sharp trimming knife cover most smooth-wall jobs. Larger projects often need specialist equipment and access tools.
What type of wall is best for wall graphics?
Clean, dry, smooth, sound, and compatible surfaces are the easiest to install on. Textured, porous, damp, damaged, or freshly painted walls need testing, extra preparation, or a different material entirely.
Should I install wall graphics myself or hire a professional?
DIY works for appropriately sized, accessible, straightforward graphics. Large, multi-panel, elevated, textured, or customer-facing installations are better suited to a professional team.
How do I clean and remove wall graphics?
Follow the material manufacturer's gentle cleaning guidance and avoid harsh chemicals or abrasive tools. For removal, especially where protecting paint, drywall, or branding matters, professional removal is the safer route.
